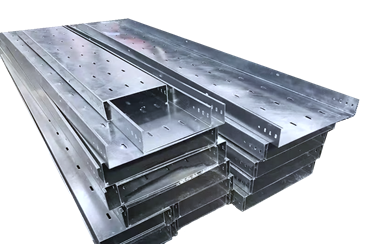

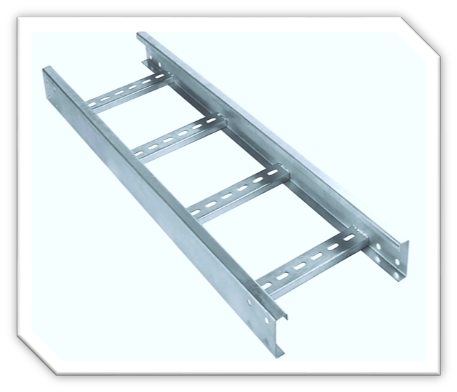

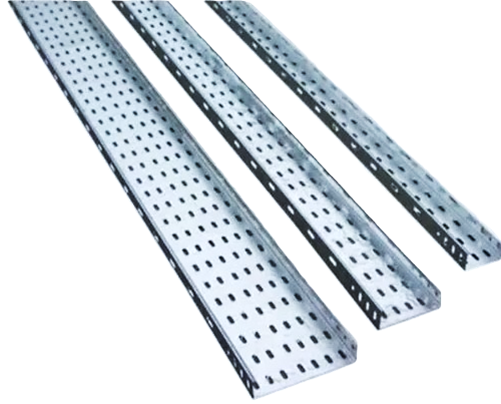

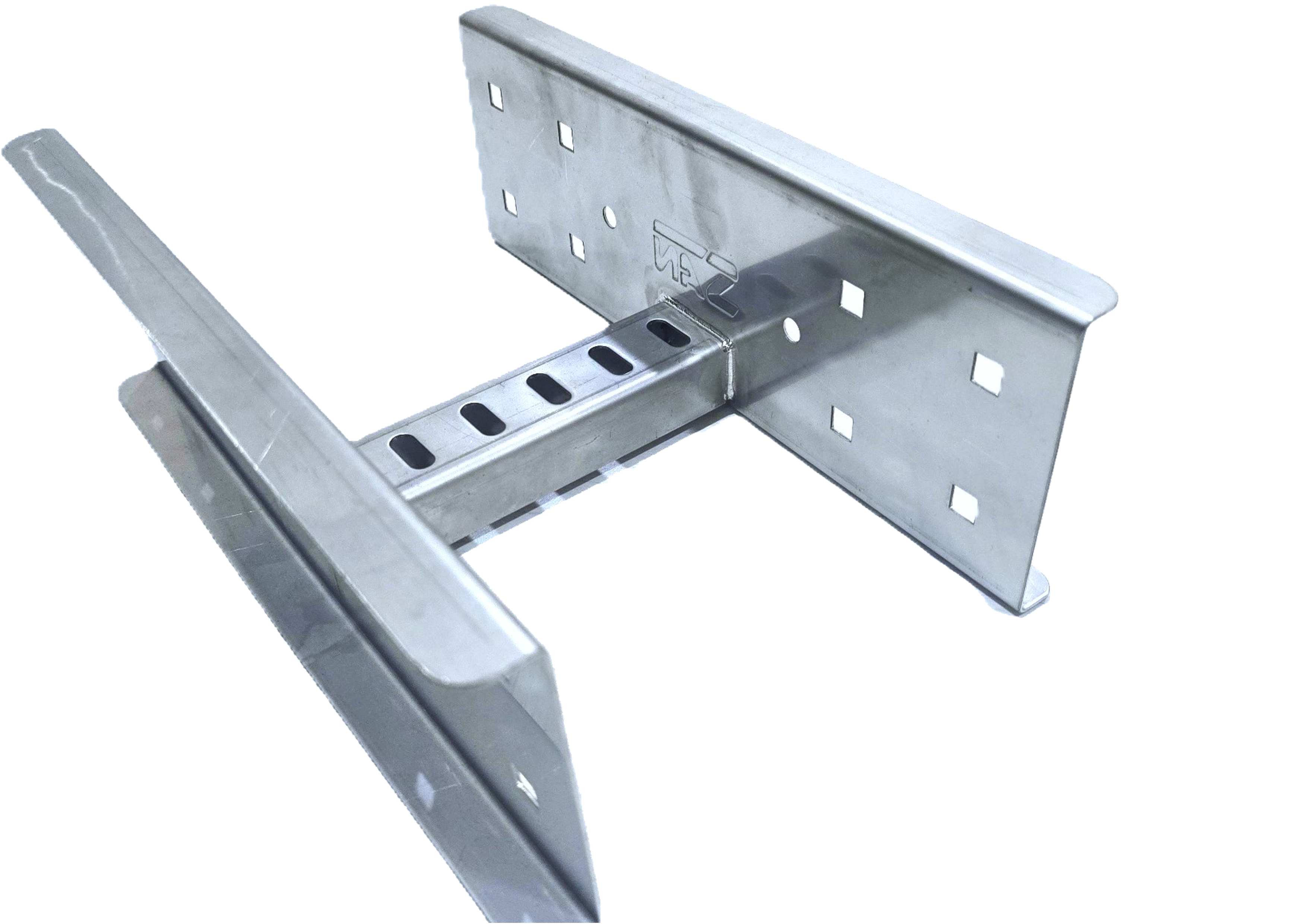

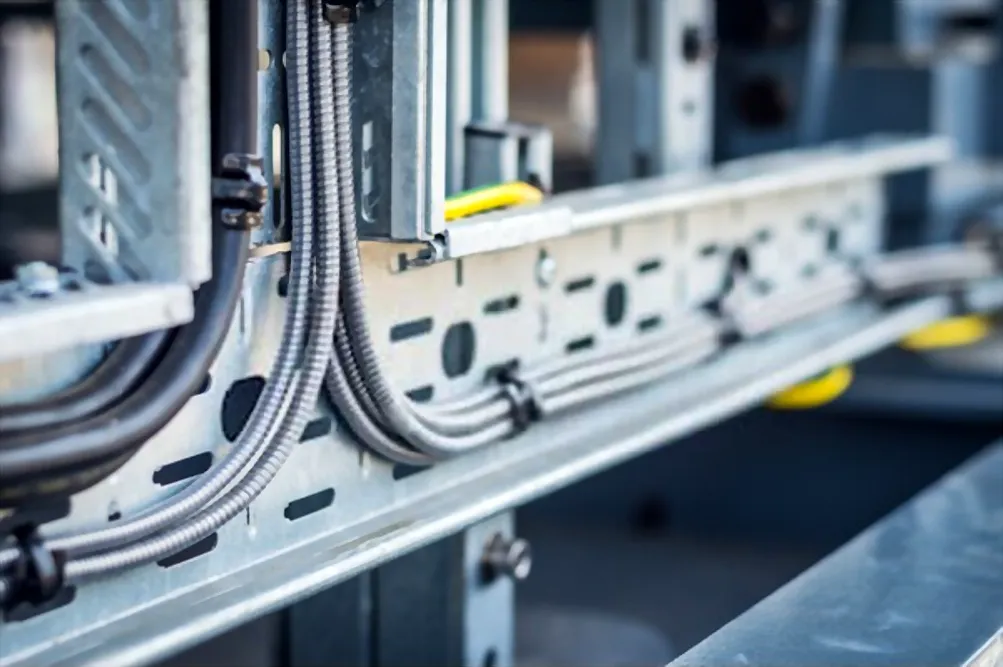

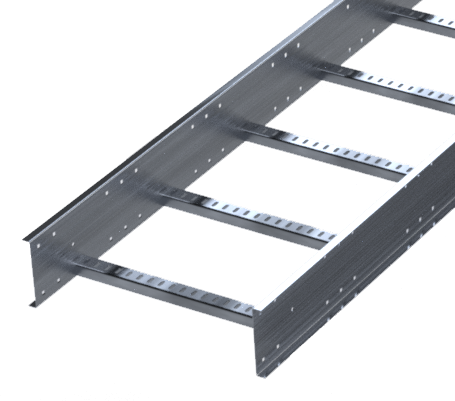

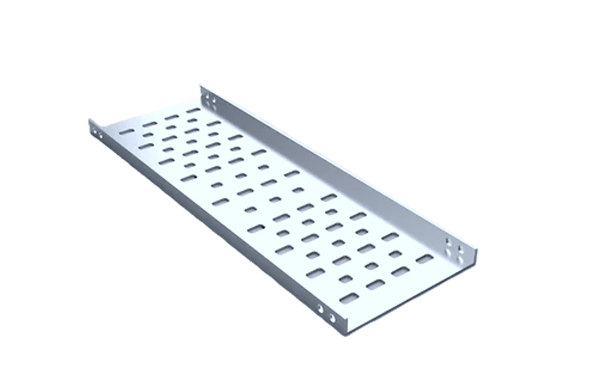

SAN Engineering introduces SuperDYMA which is a high corrosion–resistant coated steel with a special alloy composition. SuperDYMA with its unique coating layer of Zinc, 5% Aluminum, and 3% Magnesium coating provides a breakthrough solution in surface corrosion and metal cutting-edge protection, making it possible to be applied even in the most severe environments (C5) such as livestock, chemicals, and marine areas. SuperDYMA can switch many traditional steel and metal materials in various applications in our life at a greatly competitive cost. At SAN, we use SuperDYMA in the manufacturing of cable support systems like cable ladders, cable trays, cable trunking, Unistruct Channels and for many other metal fabrication jobs that need to withstand harsh environments. For More information and usage on SuperDYMA, please contact SAN office personal.
Note: The SuperDYMA logo and brand name are exclusive property of Ton Nam Kim Group.

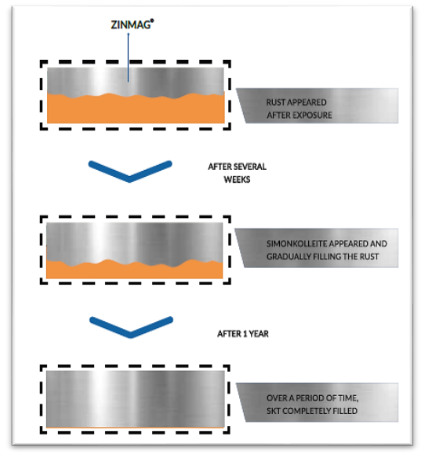

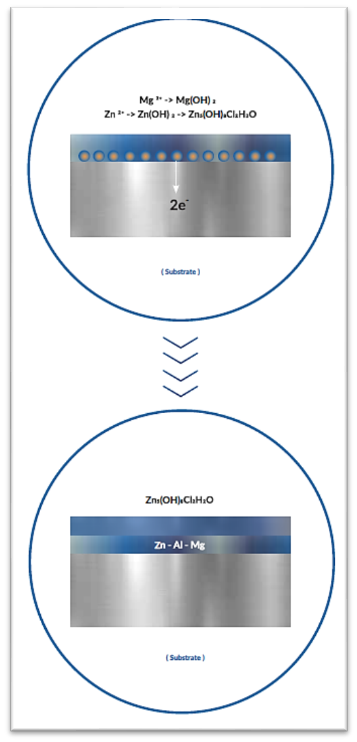

Magnesium in the coating accelerates formation of a dense protective crystalline film (Simonkolleite), which helps seal surfaces and reduce penetration by corrosive agents.

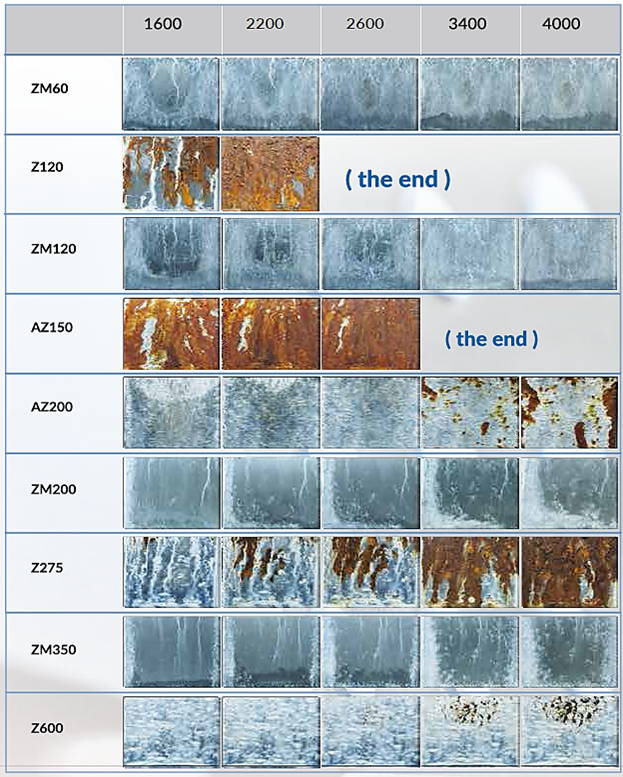

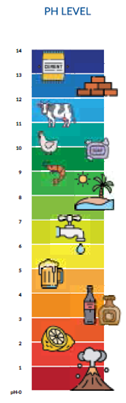

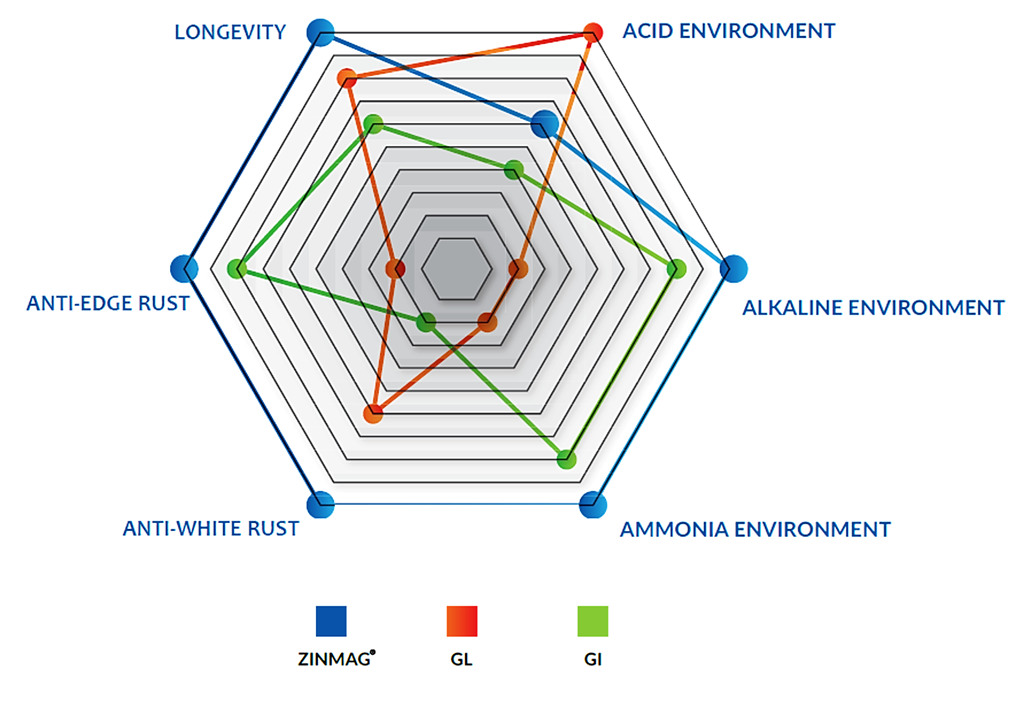

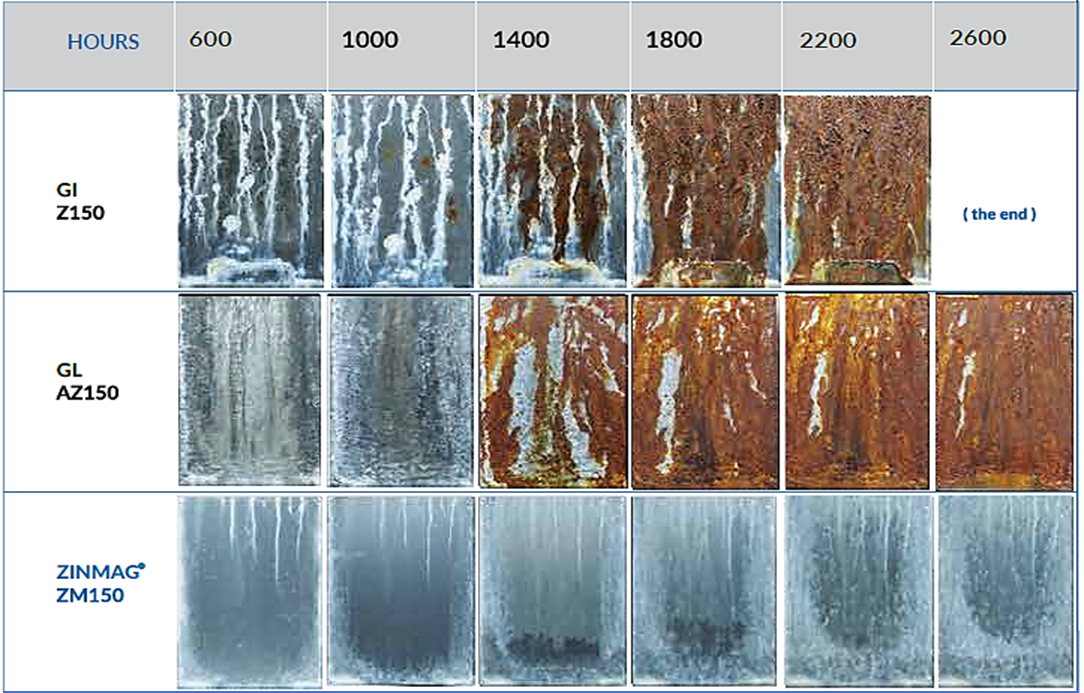

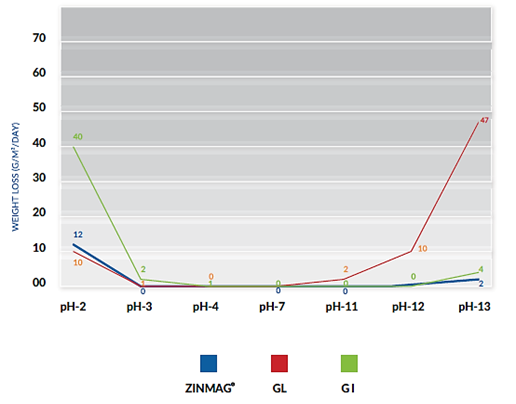

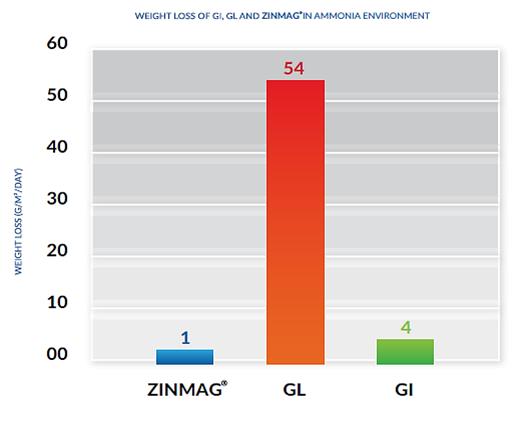

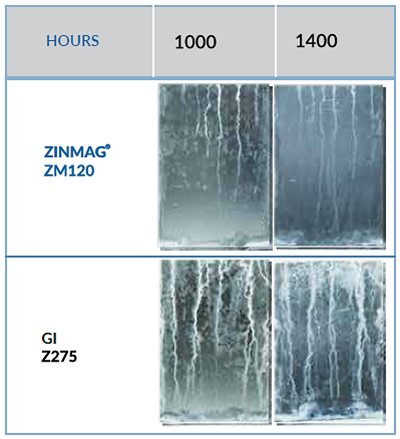

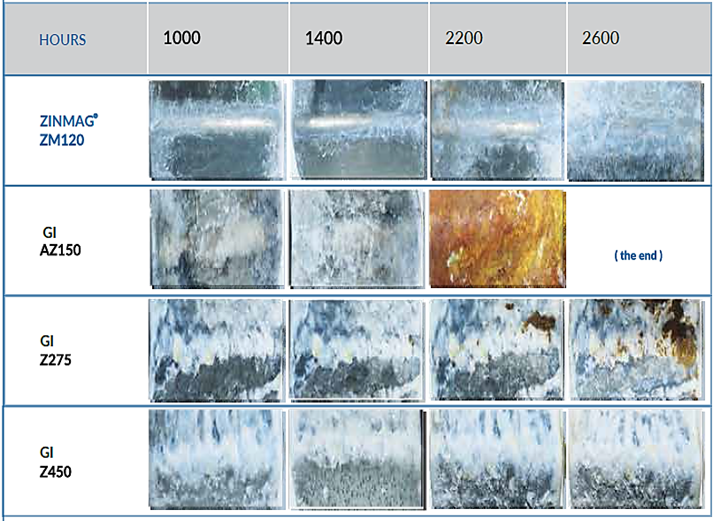

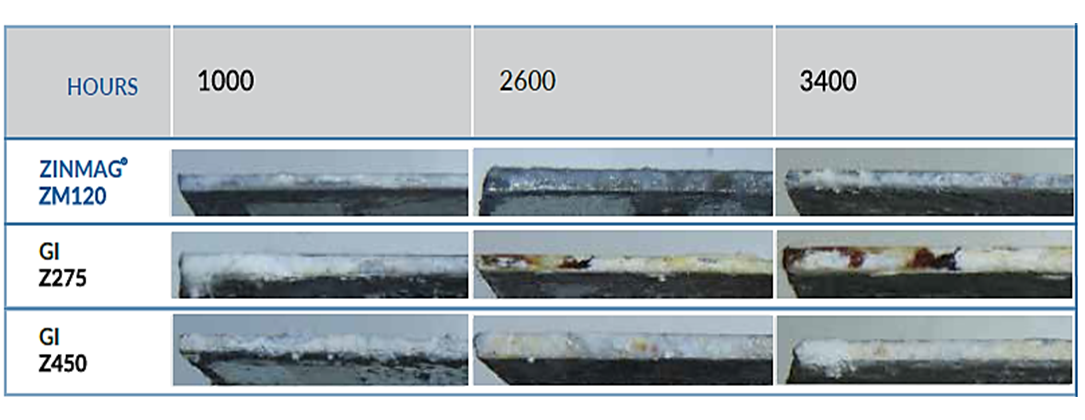

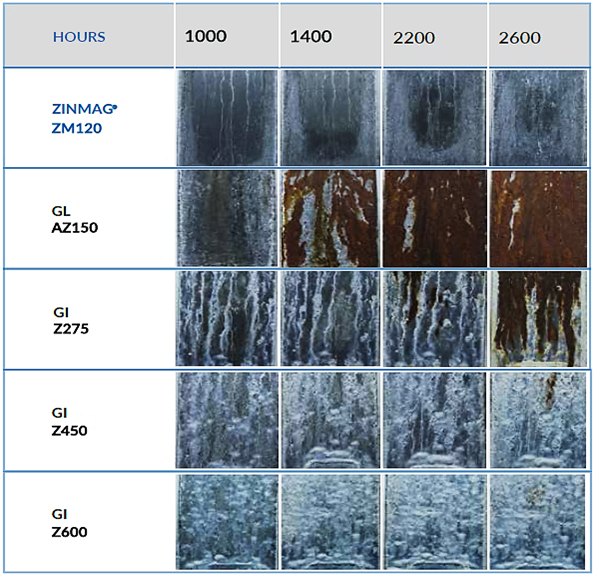

Source references include SST benchmarks, cut-edge behavior, flat surface tests, forming-position tests, white-rust resistance, and chemical environment comparisons.

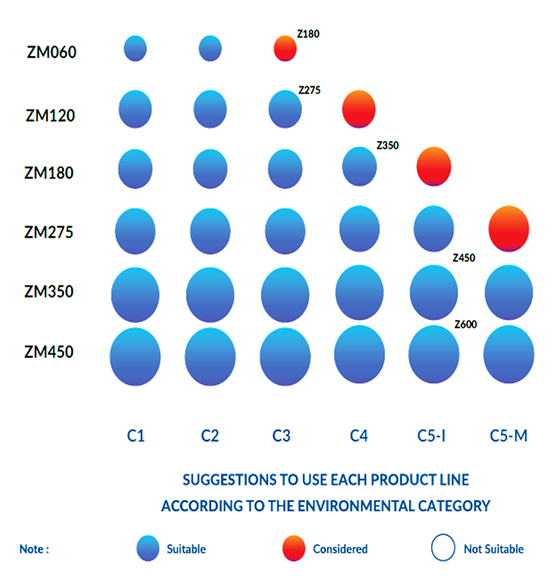

Coverage spans C1 through C5 (industrial and marine) with recommendations for severe corrosion exposure and long warranty targets.
Lower coating mass requirements and lower shipping costs.

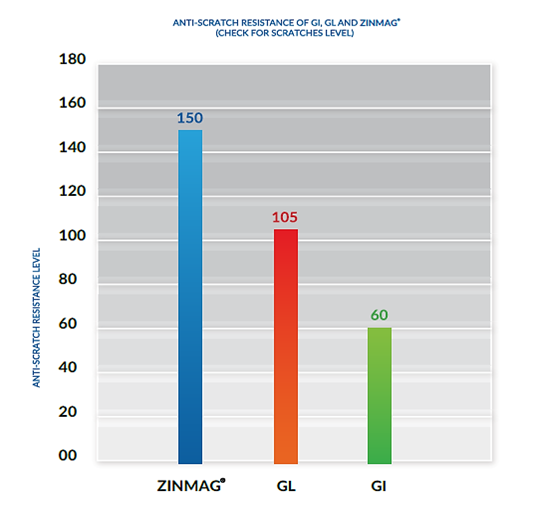

Reduced handling concern for scratches and edge exposure during fabrication and transport.
Lower maintenance cost and longer project lifetime.

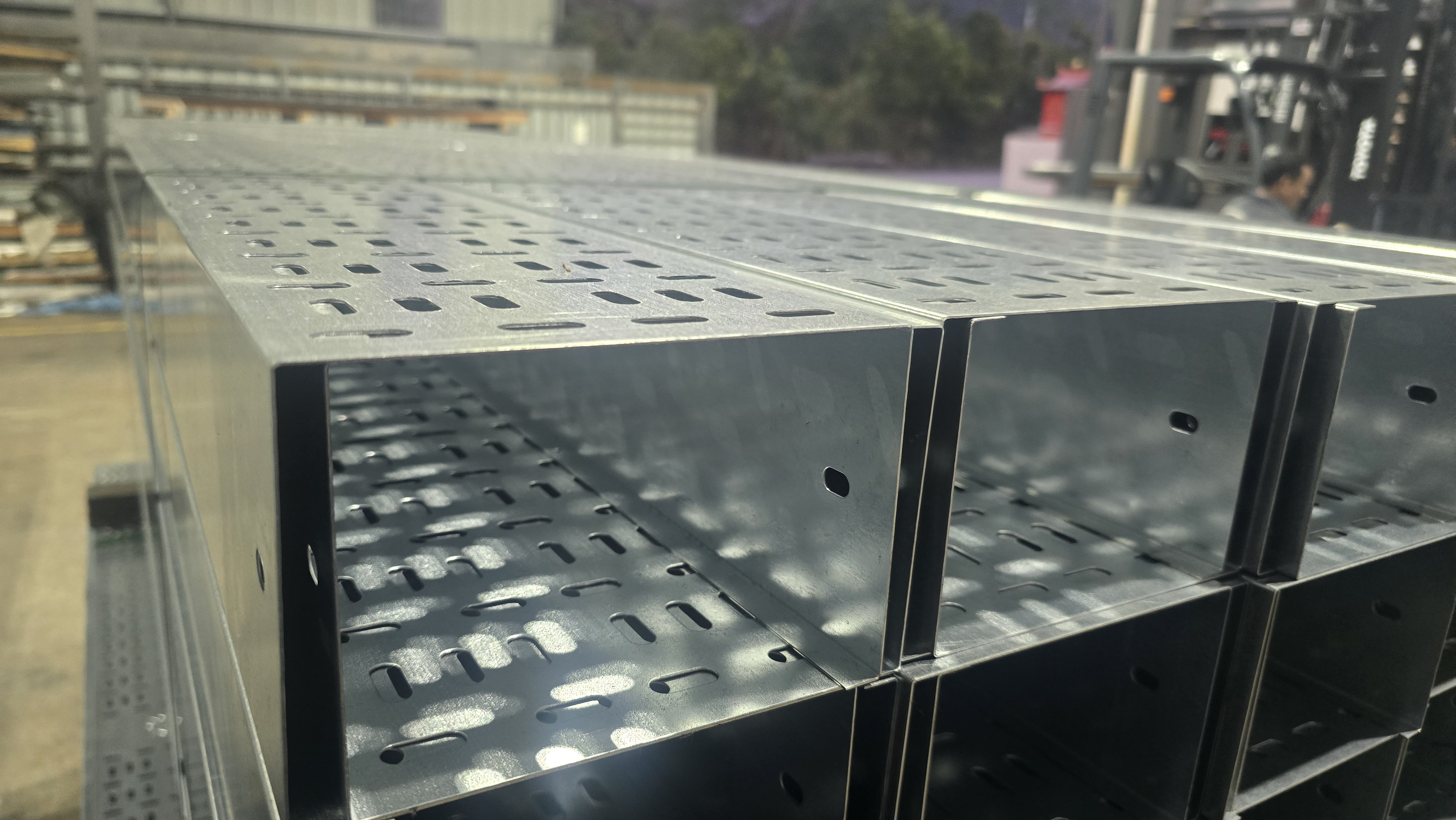

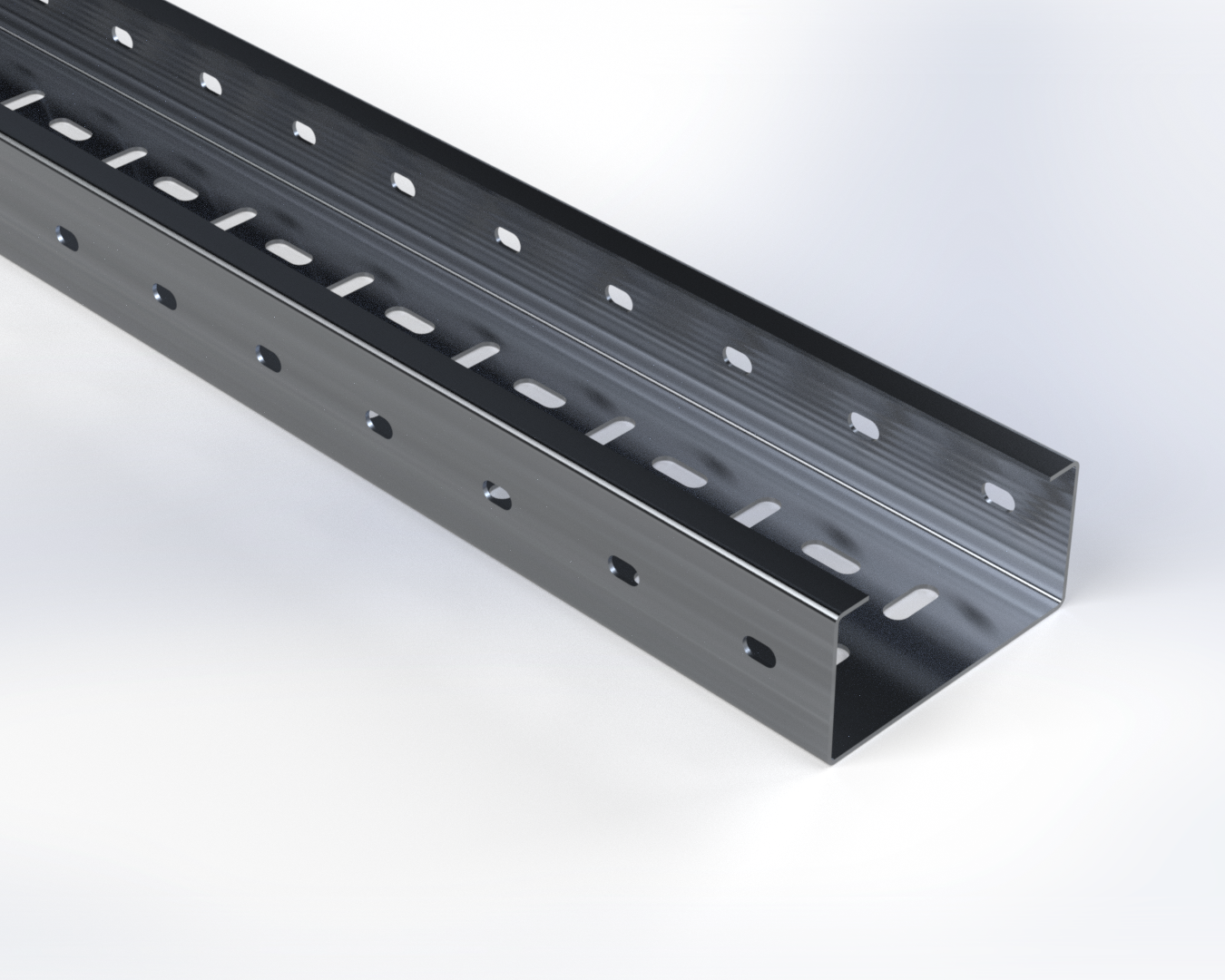

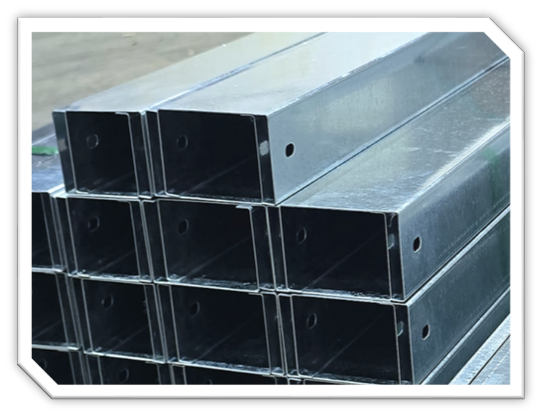

SuperDYMA trunking is designed for data centers, industrial facilities and coastal projects requiring corrosion resistance, surface durability and installation-friendly handling.

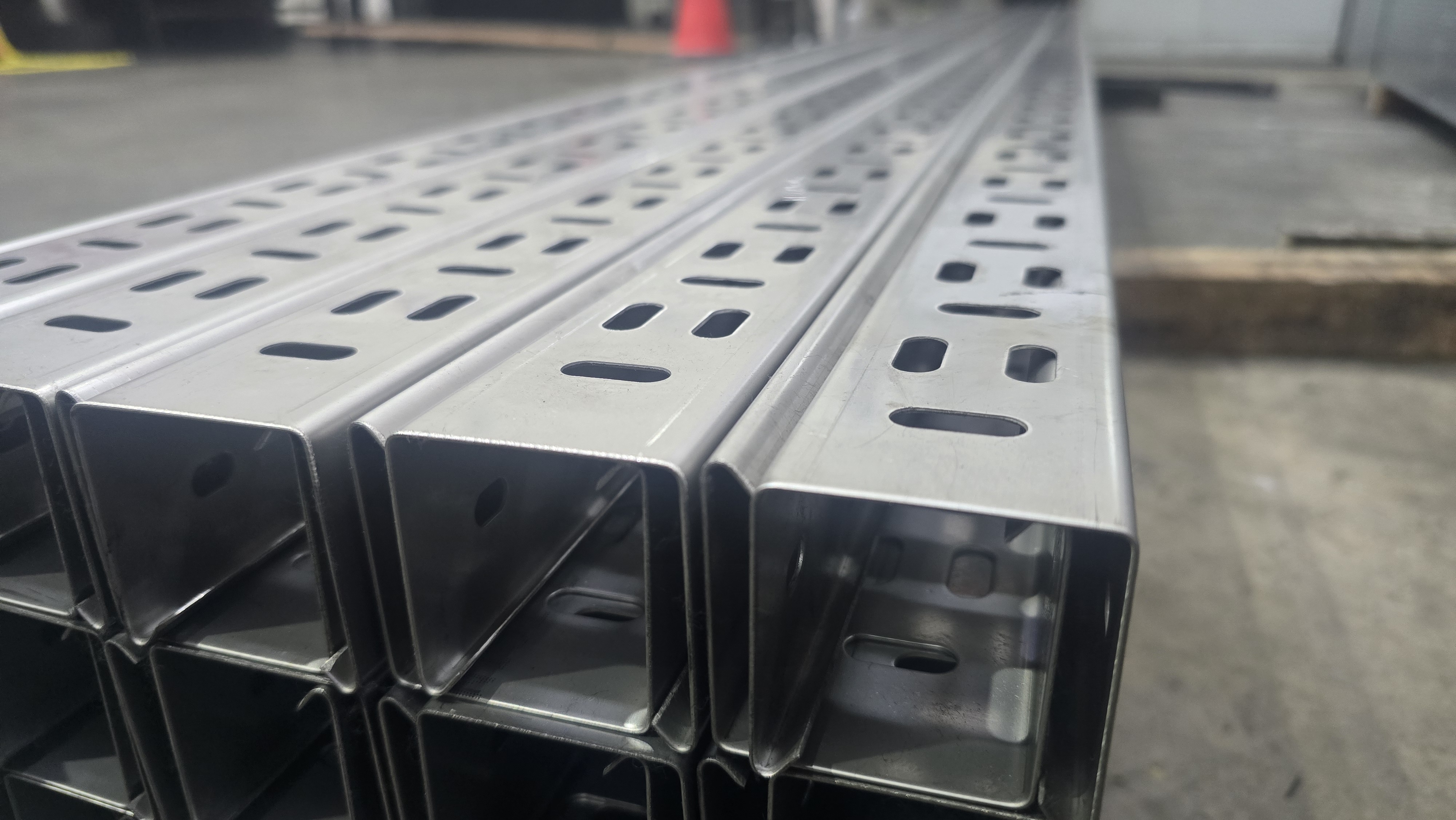

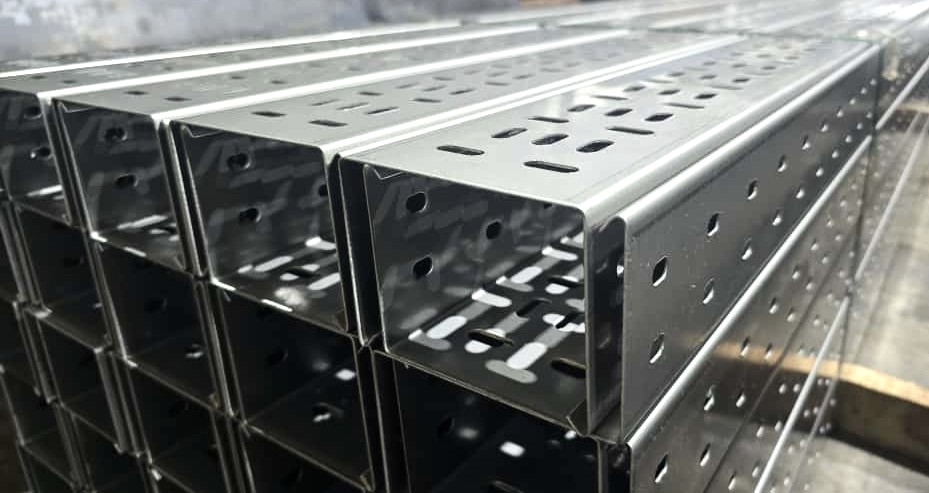

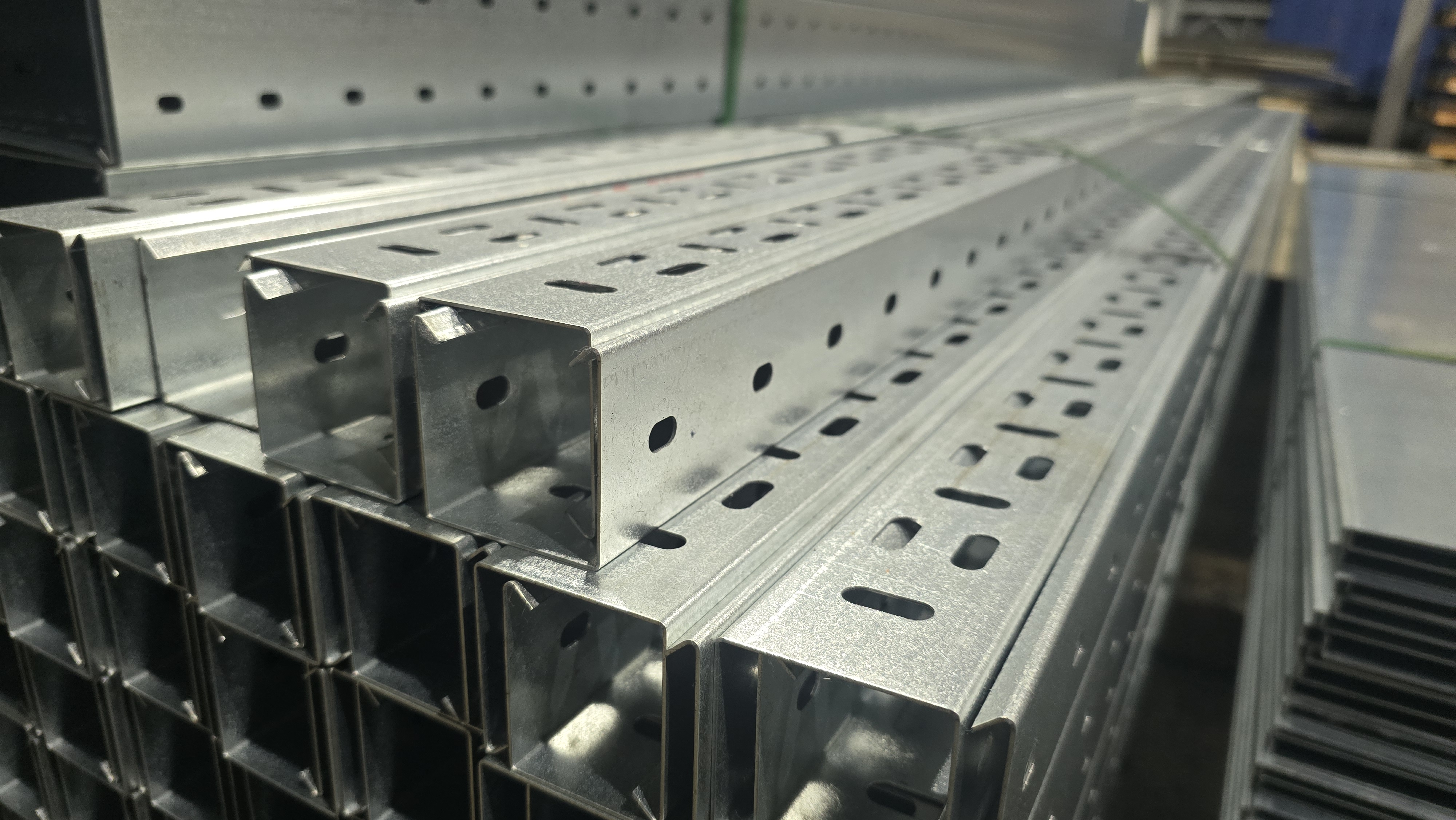

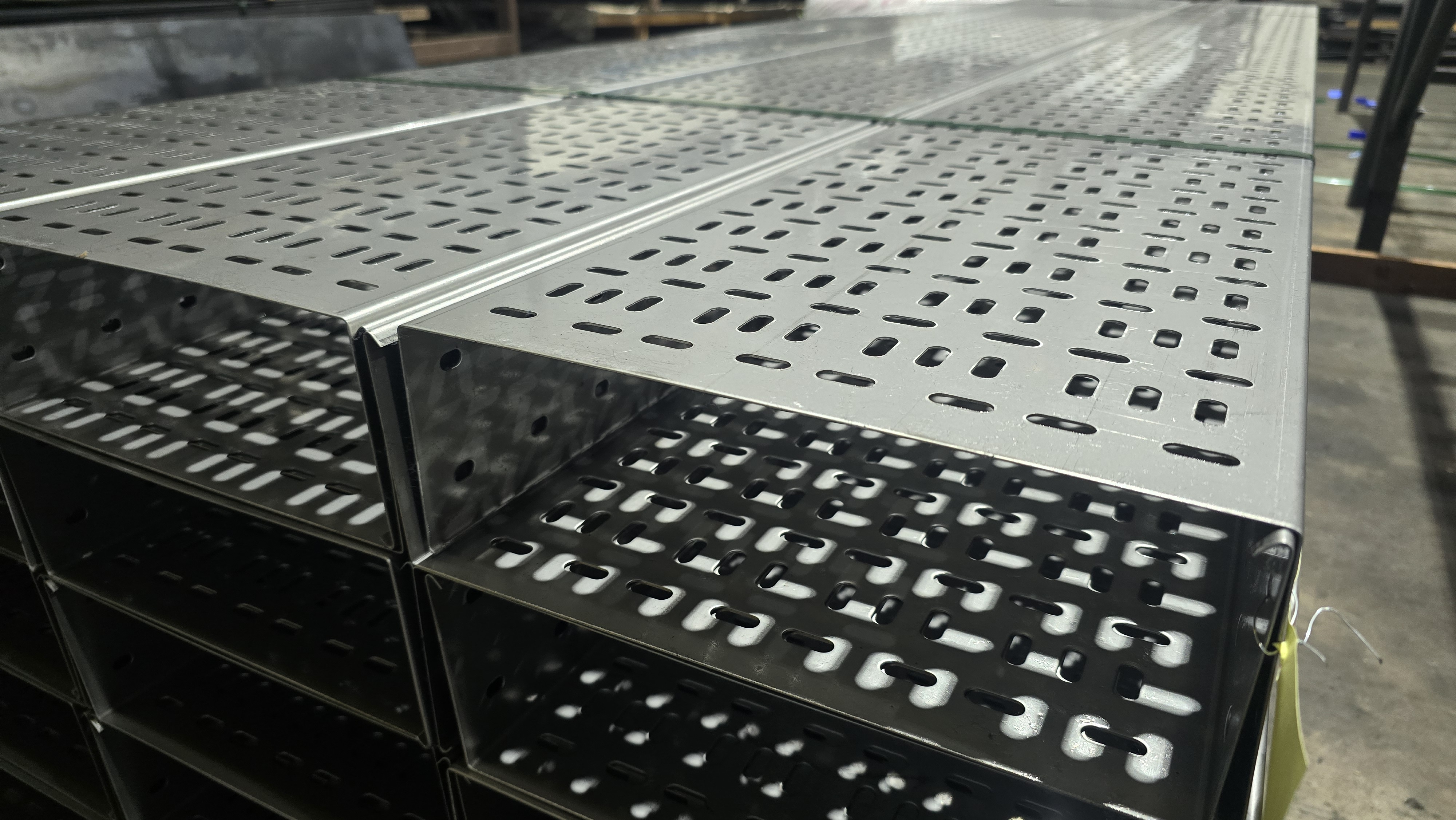

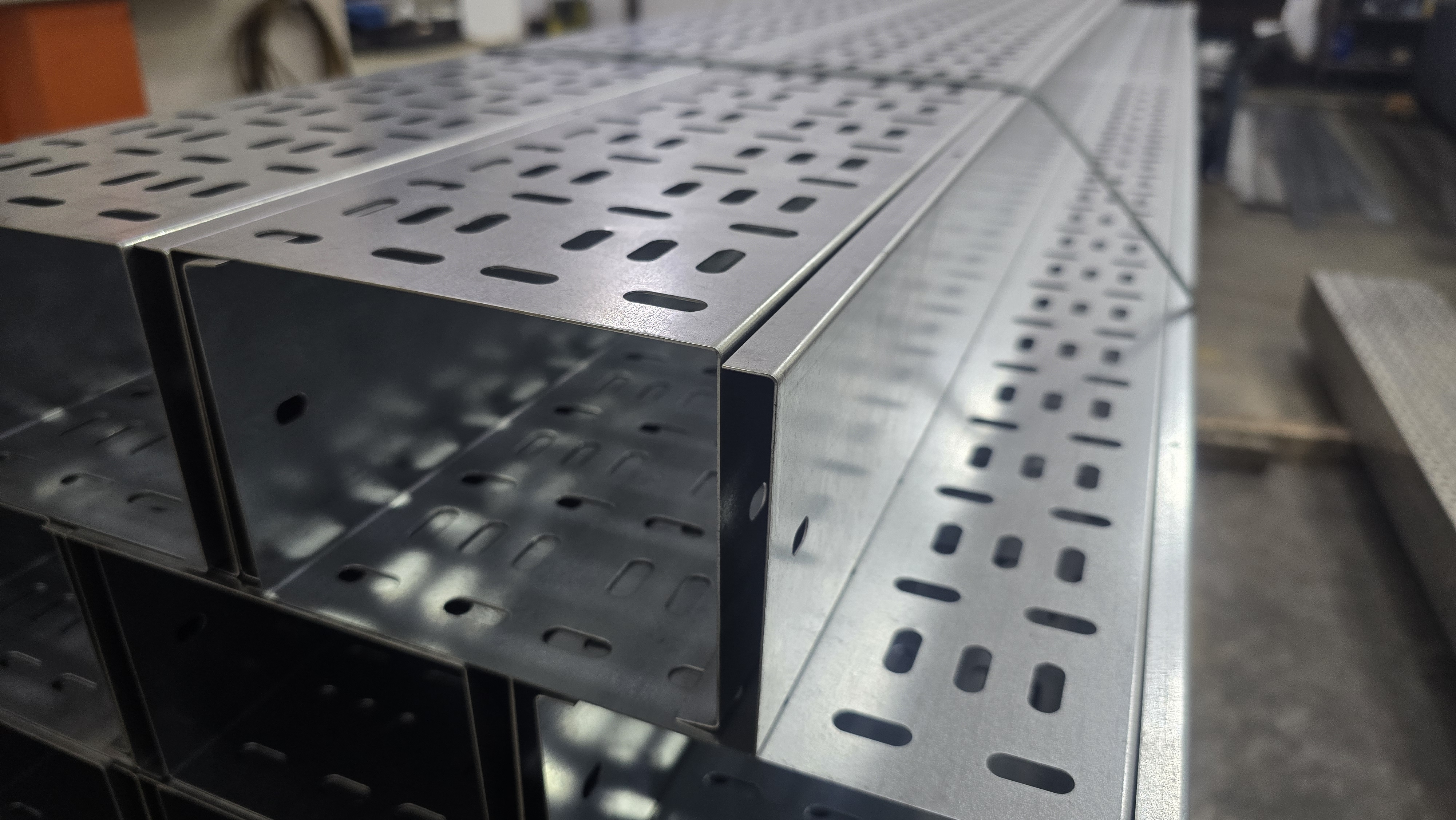

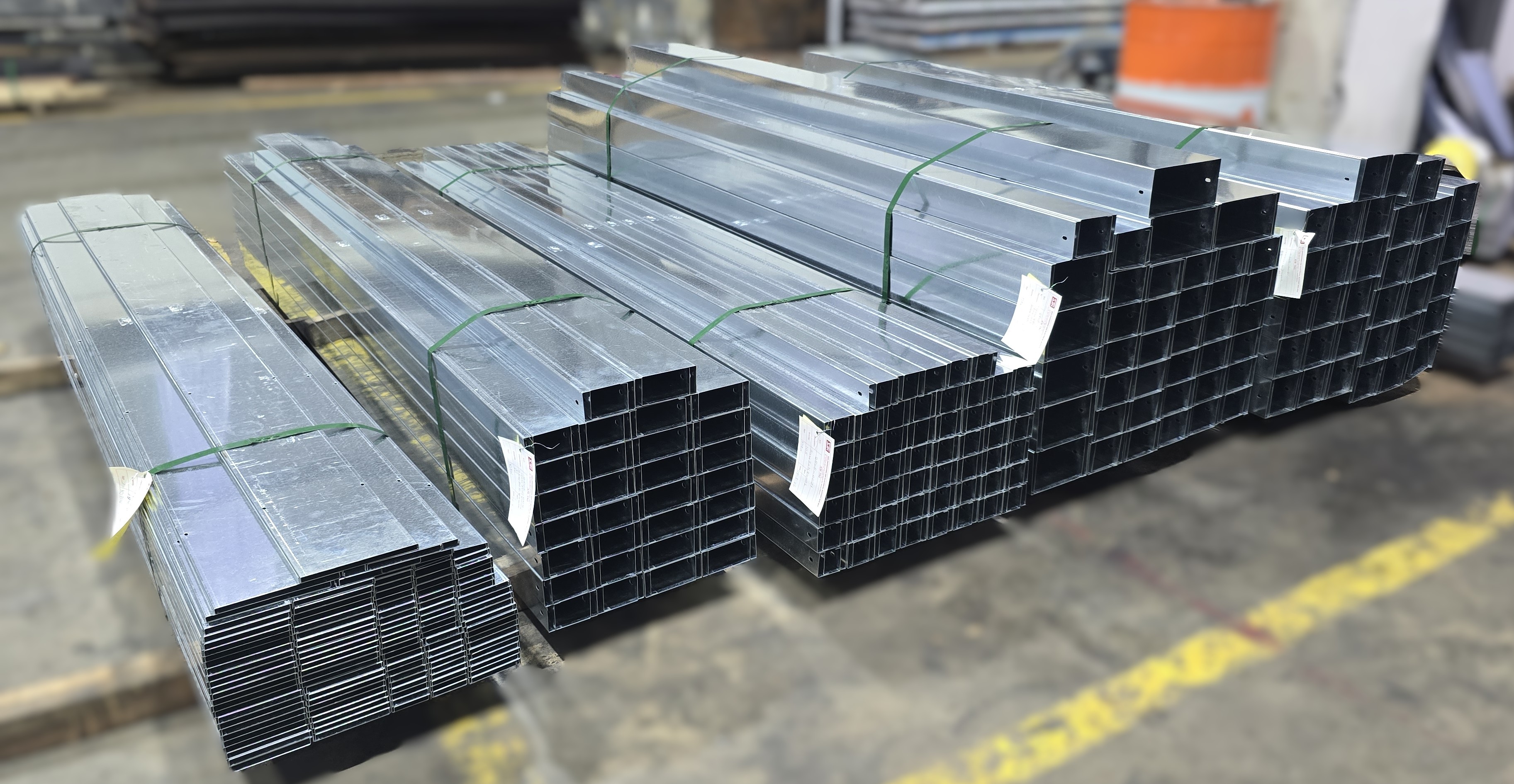

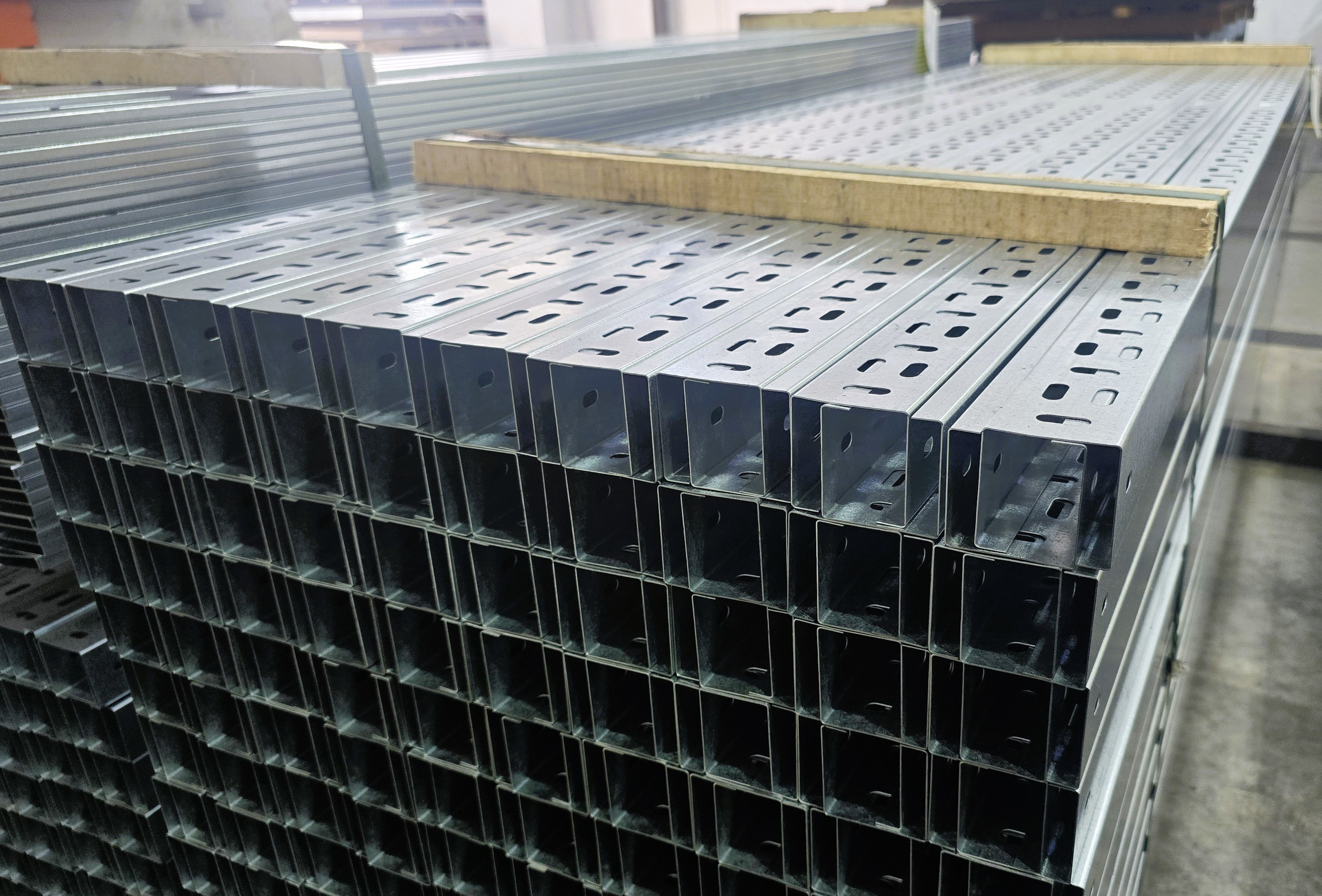

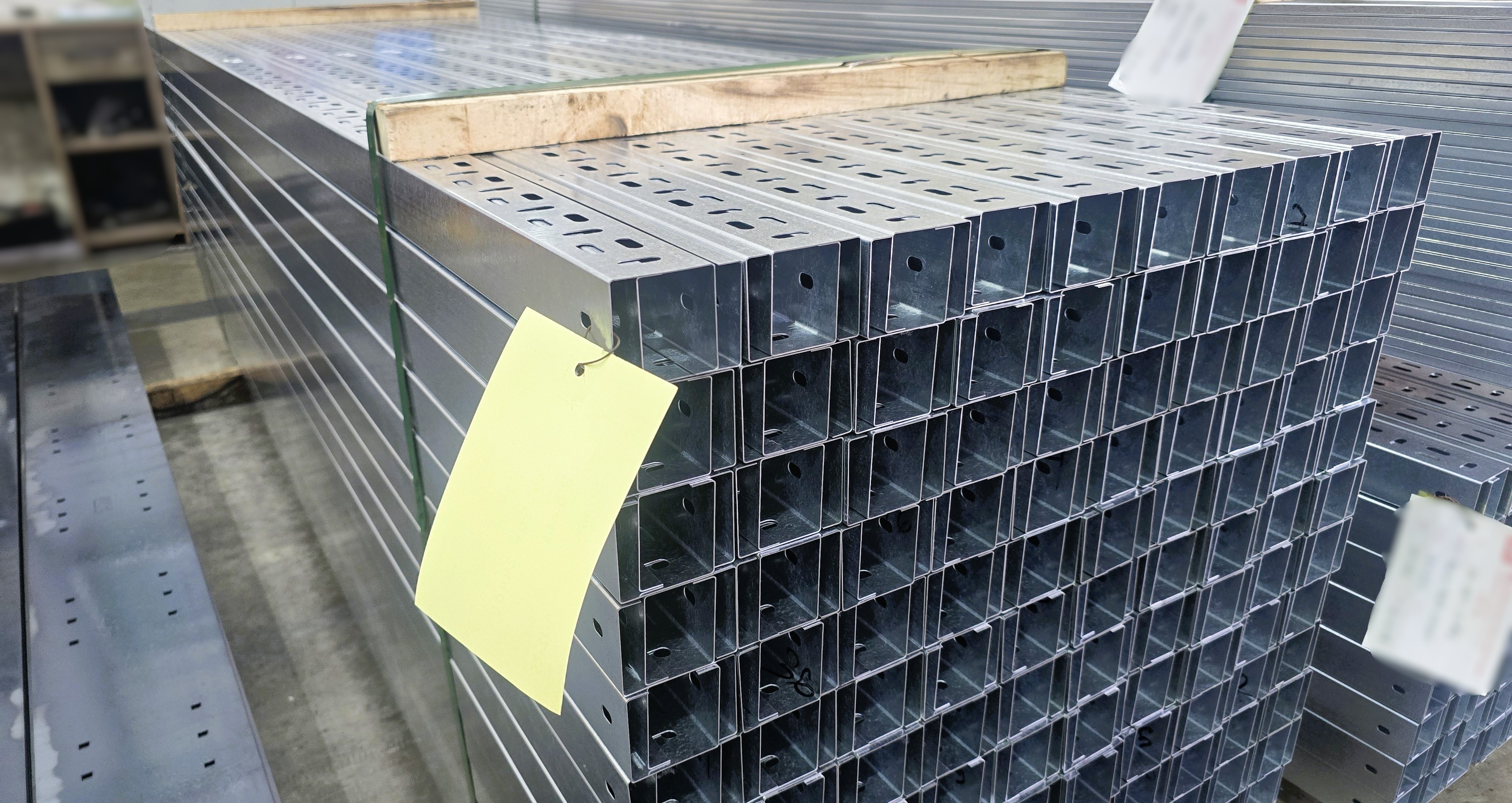

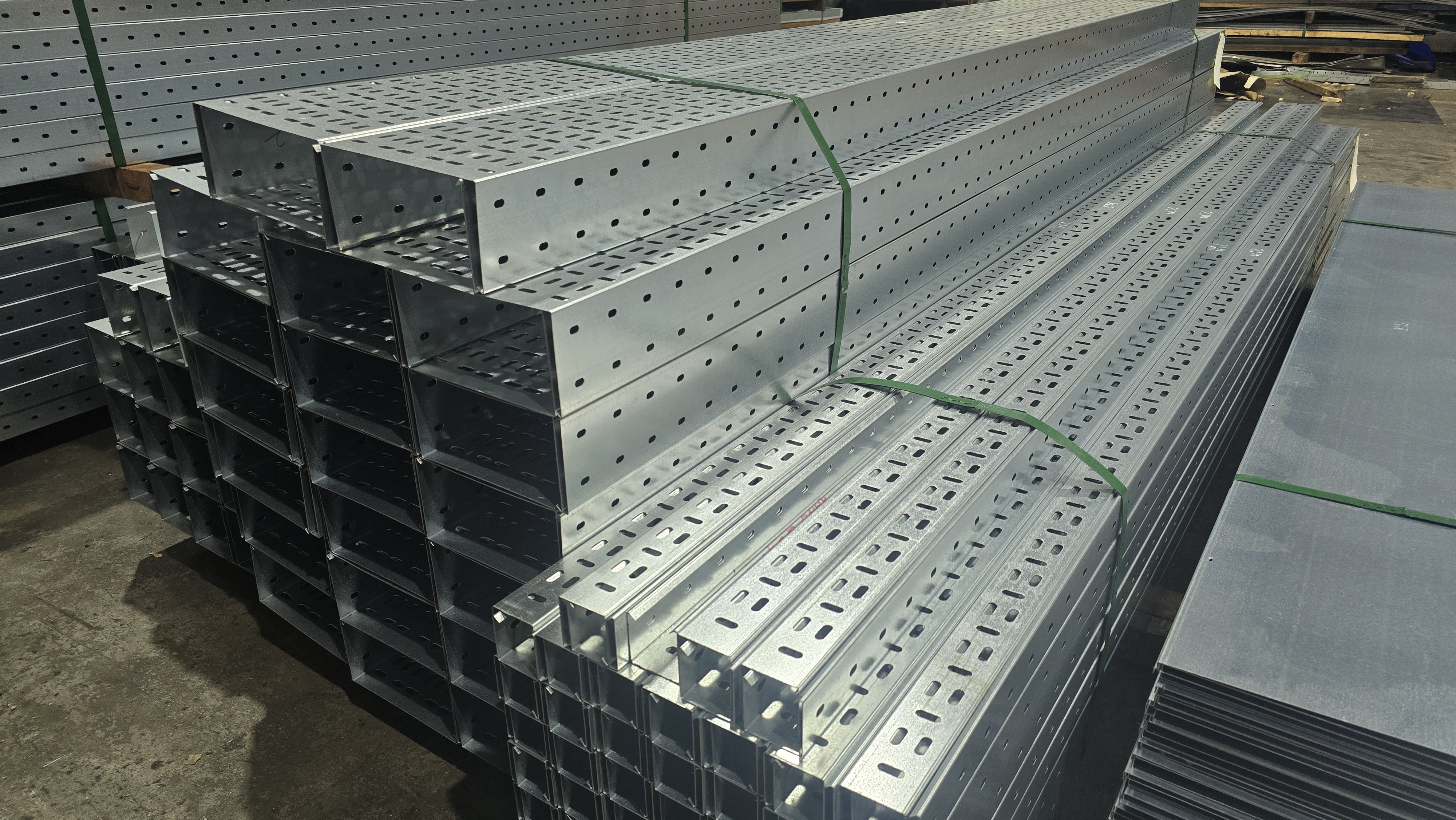

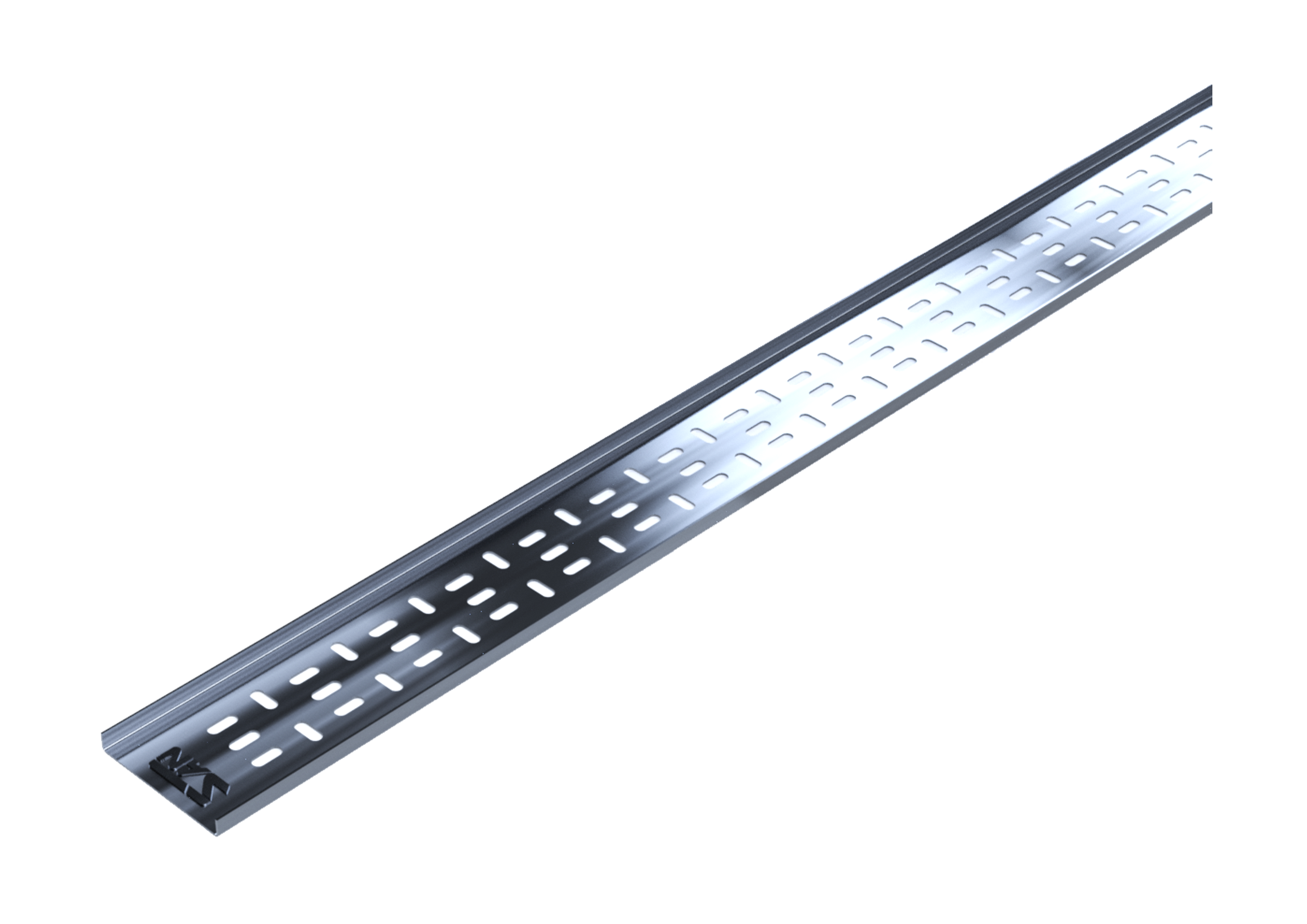

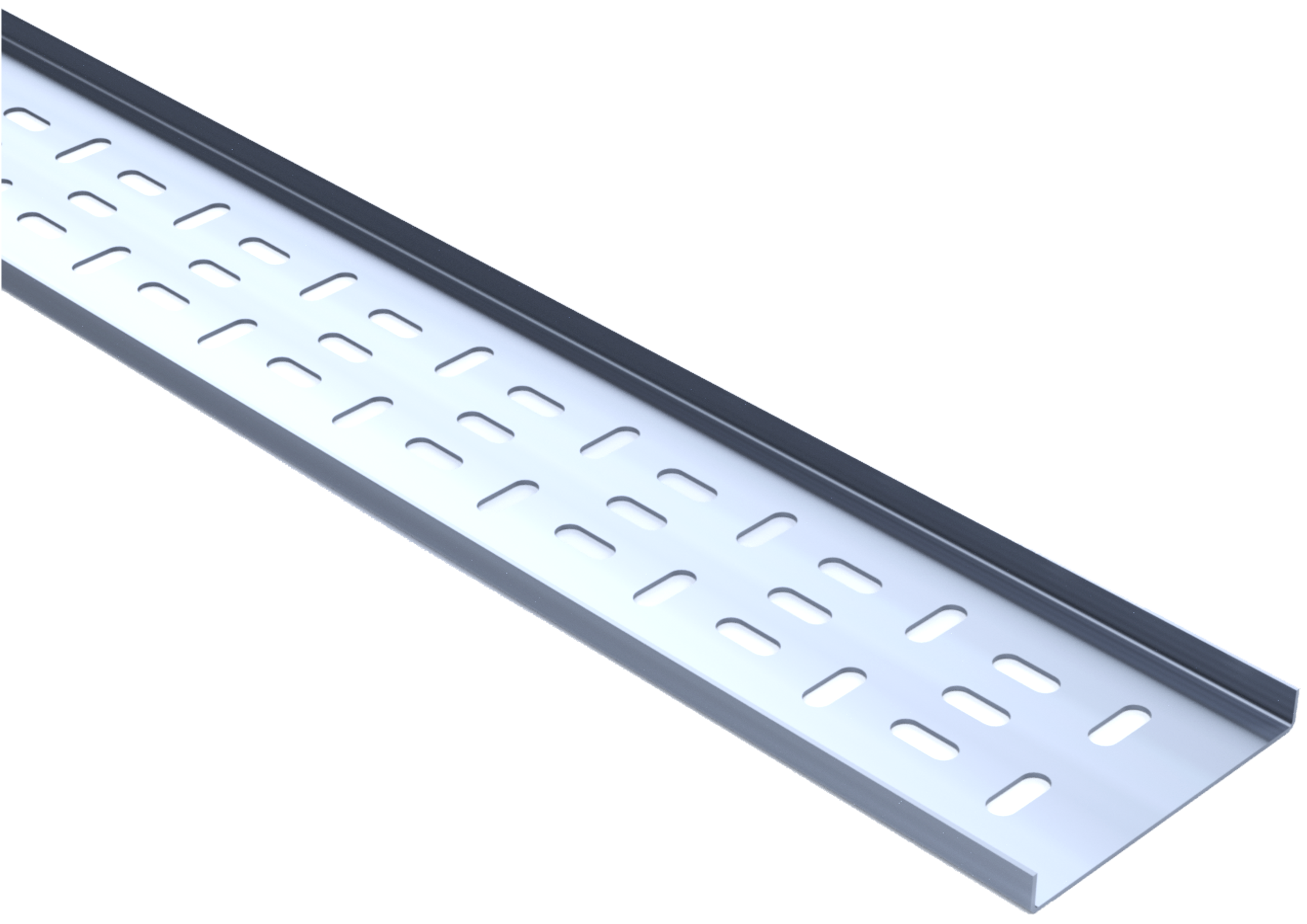

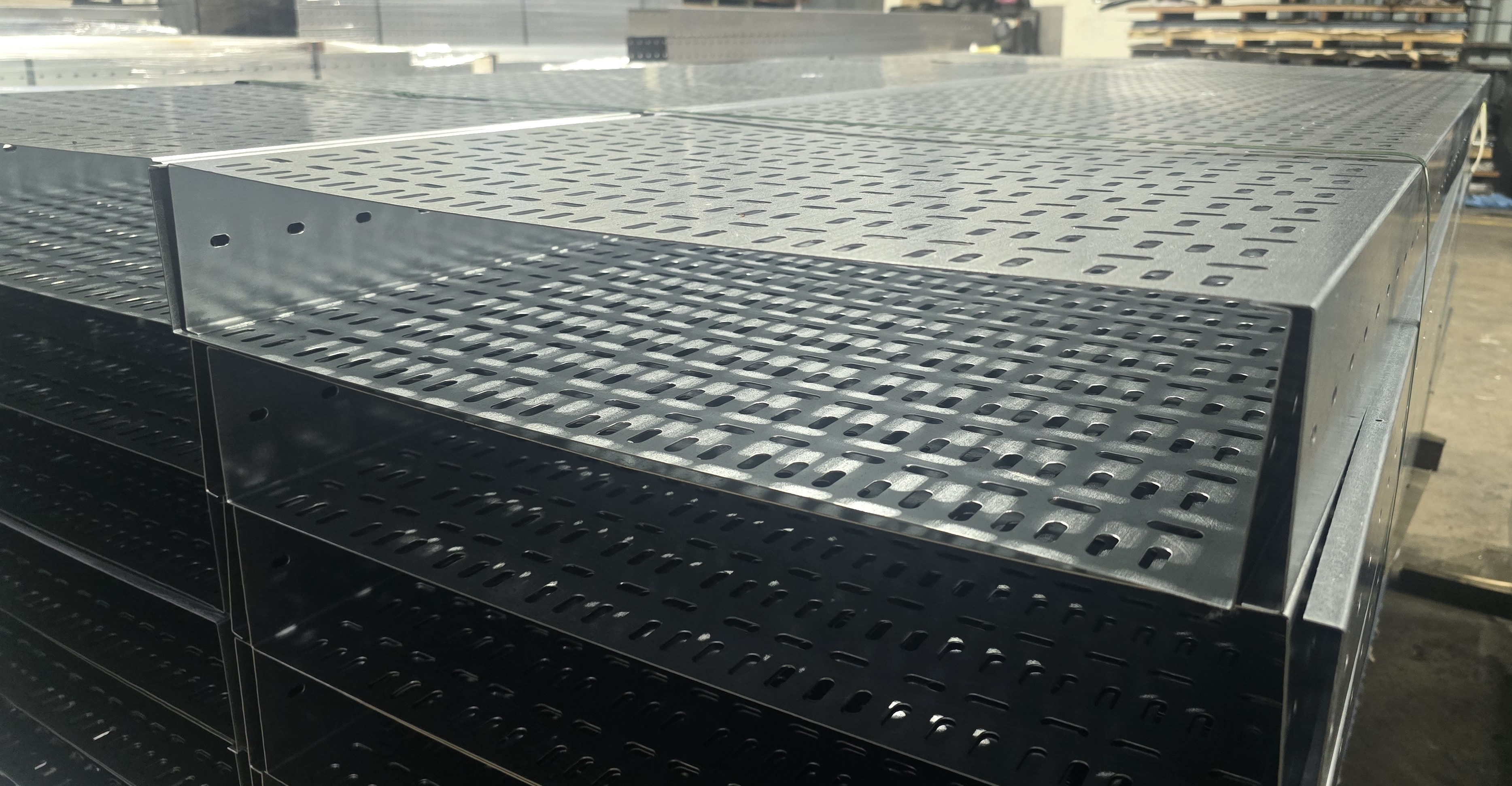

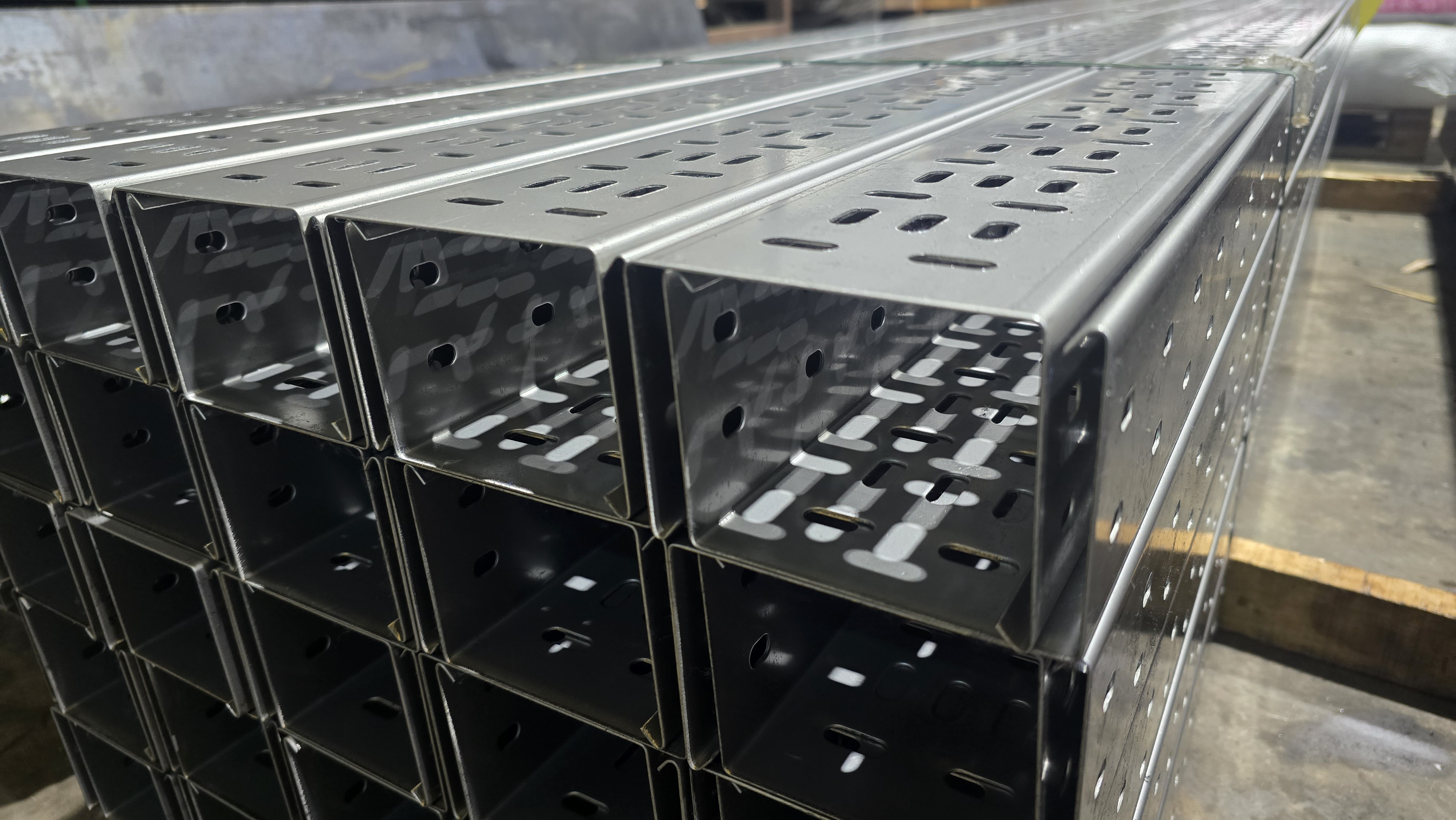

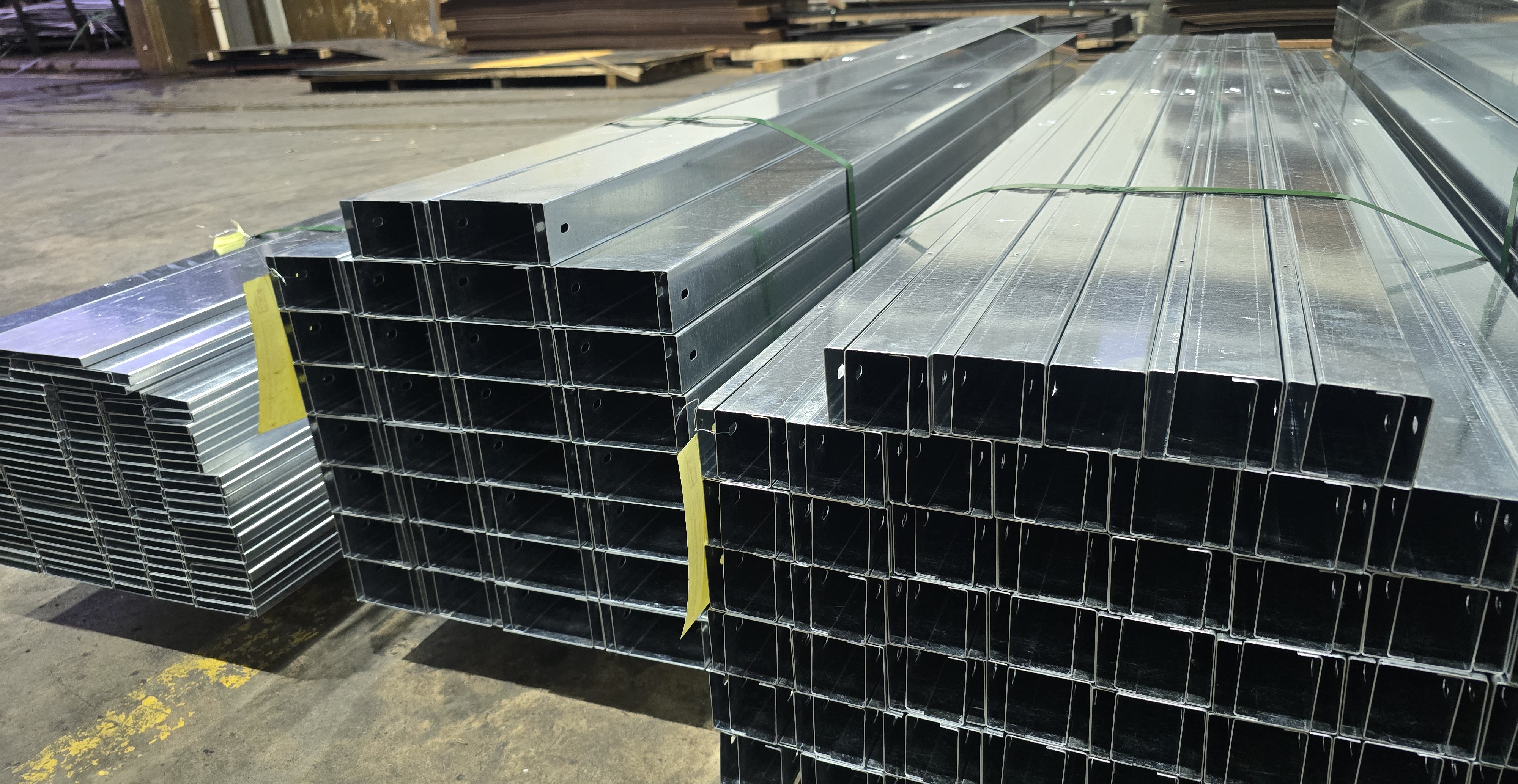

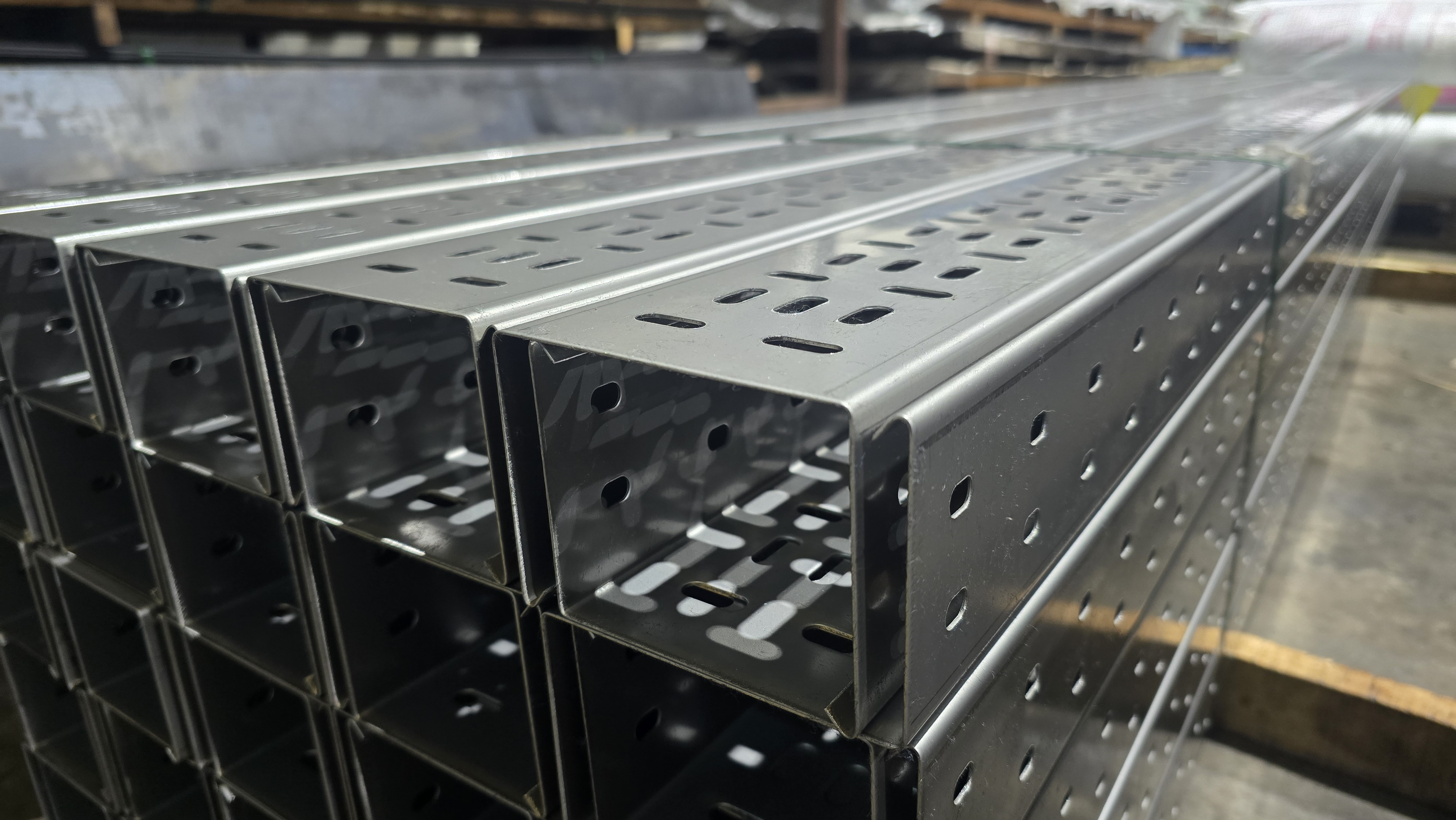

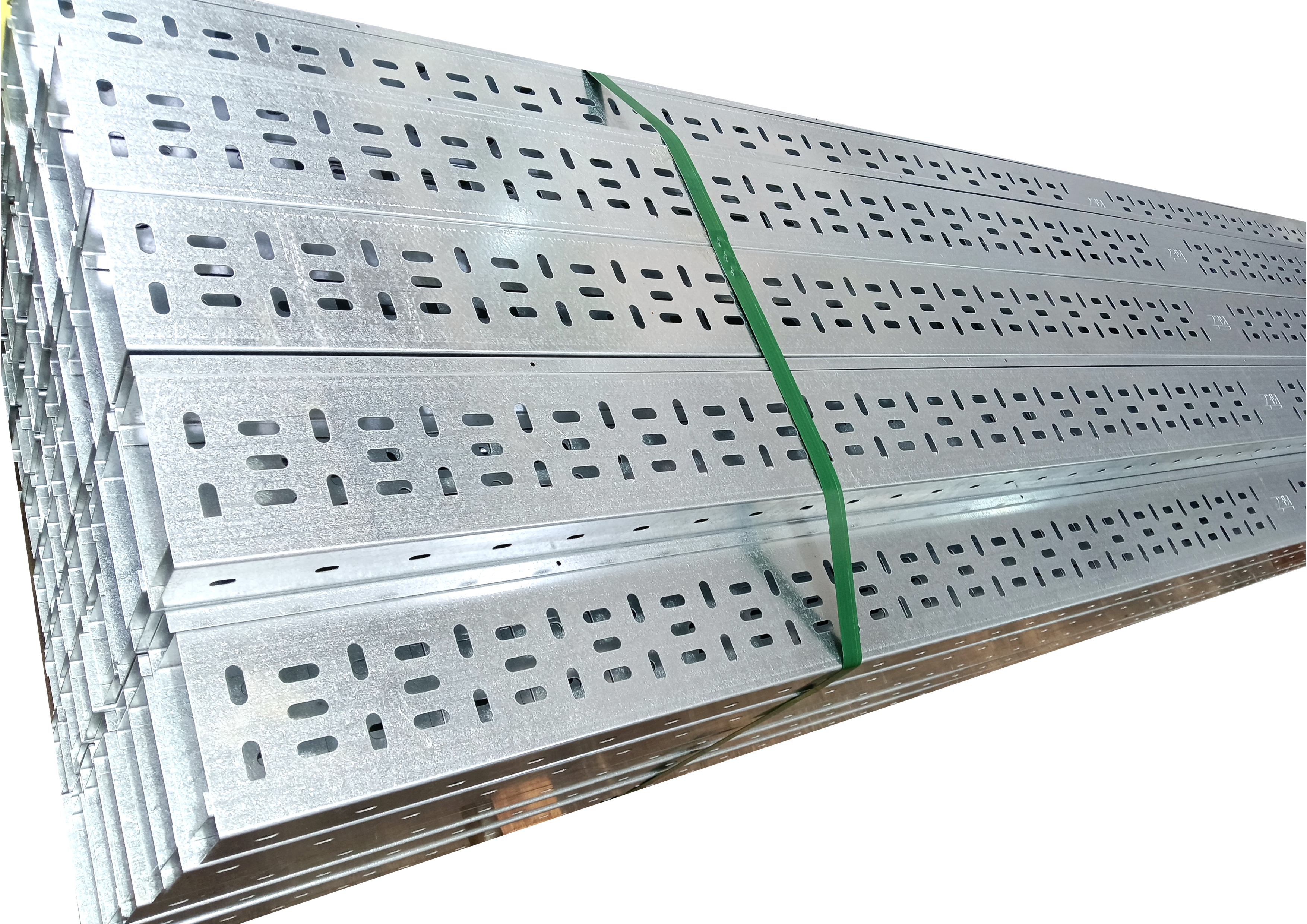

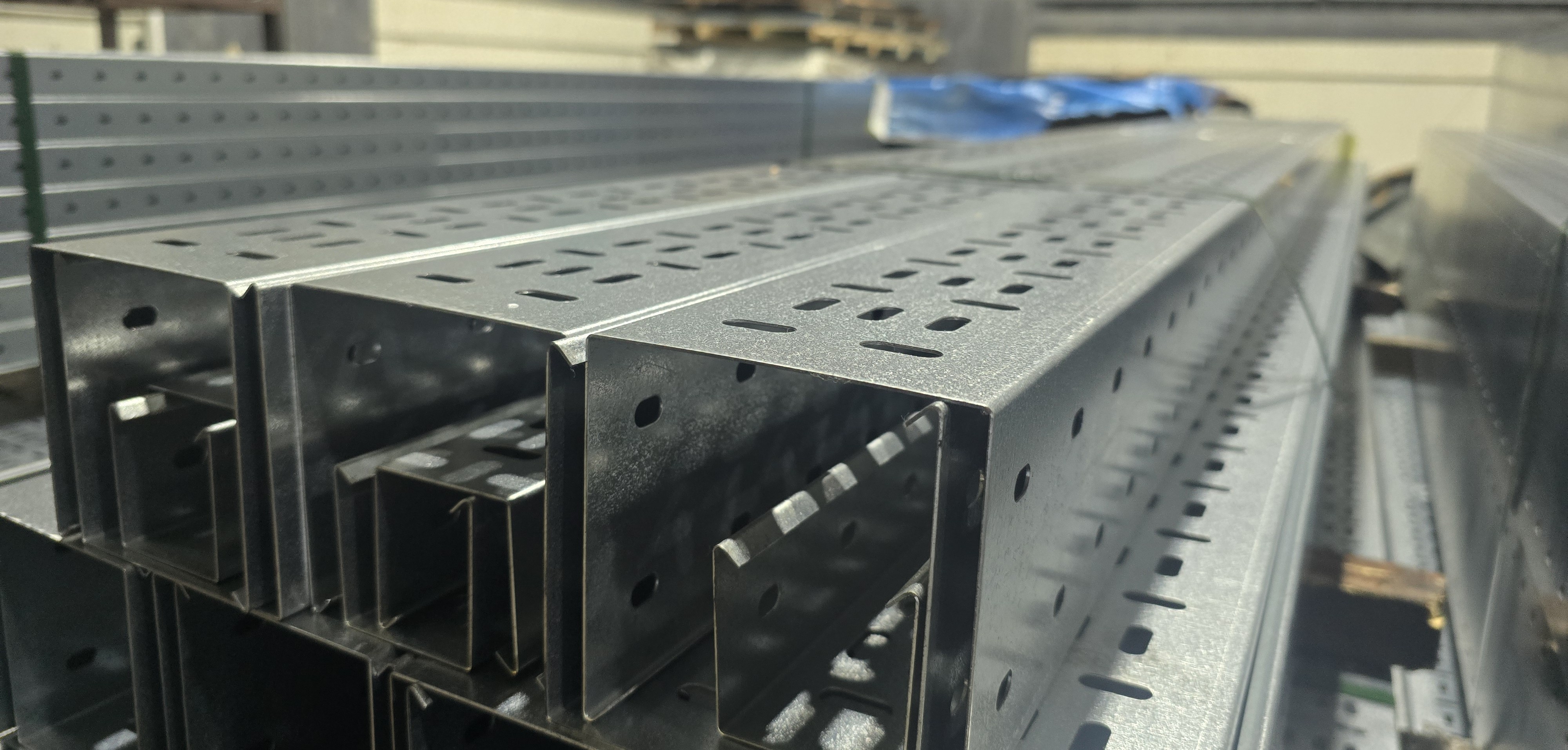

Project and product visuals for SAN Engineering SuperDYMA systems.
Common questions about SAN Engineering SuperDYMA coated steel in Malaysia.

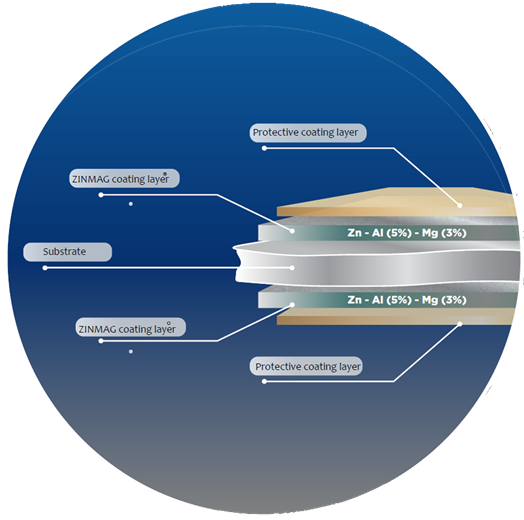

SuperDYMA is a high corrosion-resistant coated steel with a special alloy coating of zinc, 5% aluminium, and 3% magnesium. SAN Engineering supplies and processes SuperDYMA as a durable alternative to traditional steel for applications in severe environments such as marine, chemical, and livestock areas.
SuperDYMA offers 3 to 5 times the corrosion resistance of galvanized products with the same coating thickness. It also limits cut-edge corrosion, shows almost no white rust, and resists abrasion better — areas where standard GI typically underperforms. SAN Engineering can advise where SuperDYMA is the better choice.

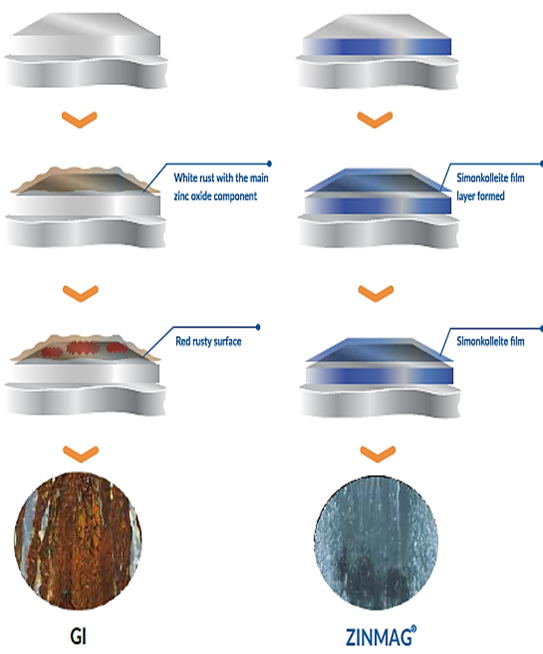

The magnesium in the SuperDYMA coating accelerates the formation of a dense, stable protective film called Simonkolleite, which spreads across the steel surface and seals it from corrosive substances. This self-filling mechanism also protects cut edges, which standard coatings cannot do as effectively.

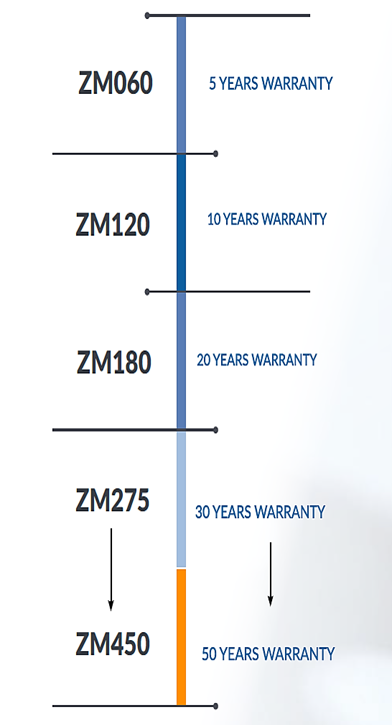

SAN Engineering supplies SuperDYMA manufactured to standards including AS1397, ASTM A 1046/A 1046M, and JIS 3323, in thicknesses from 0.4mm to 3.2mm with coating mass options from ZM60 to ZM450. The SAN Engineering team can advise on the right specification for your application.
SuperDYMA performs across environmental classes up to C5, the harshest industrial and marine categories. Verified testing shows it can be used in C5 environments around 500m from the sea with an anti-perforation warranty of up to 25 years, making it suitable for coastal, chemical, and agricultural settings.

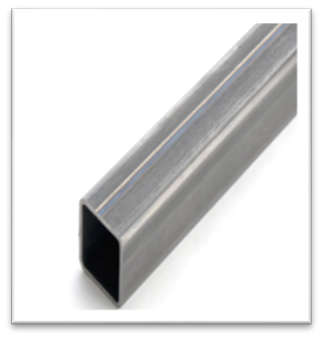

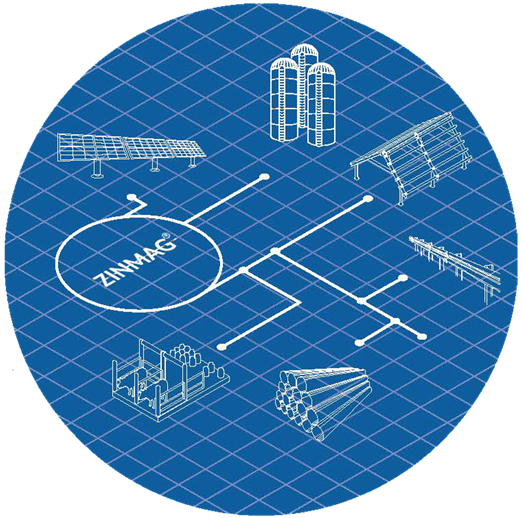

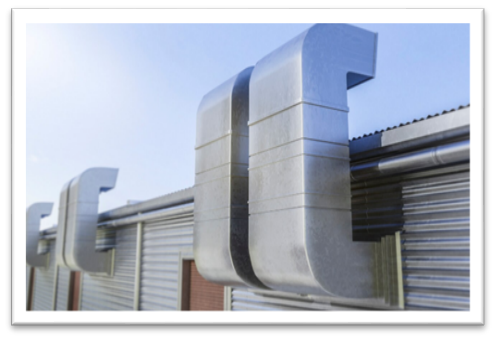

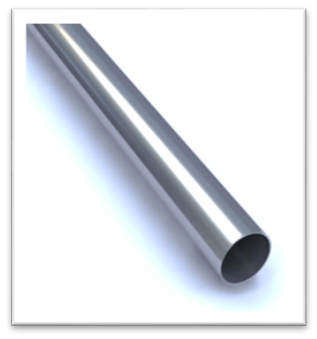

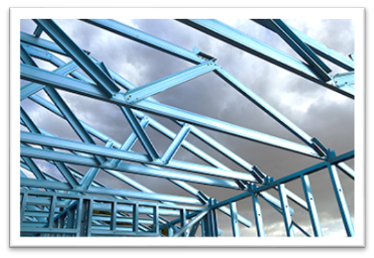

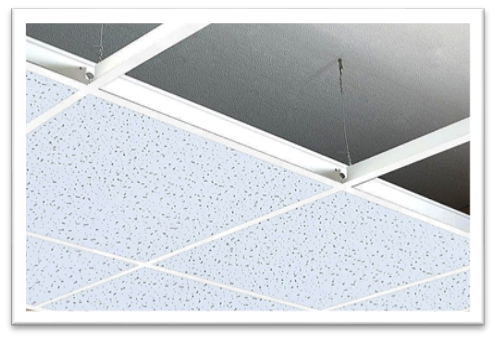

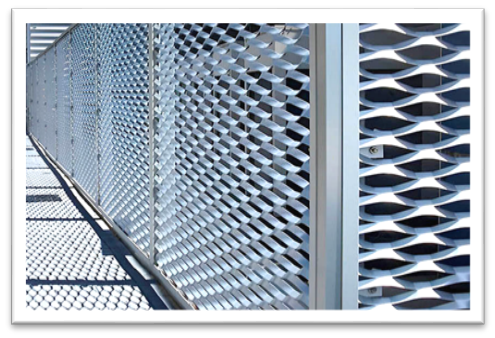

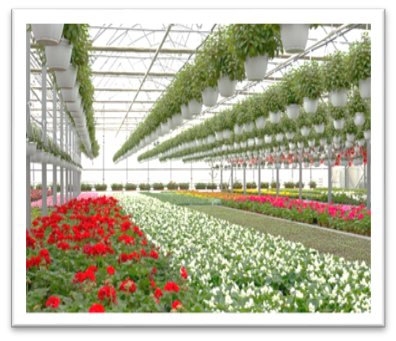

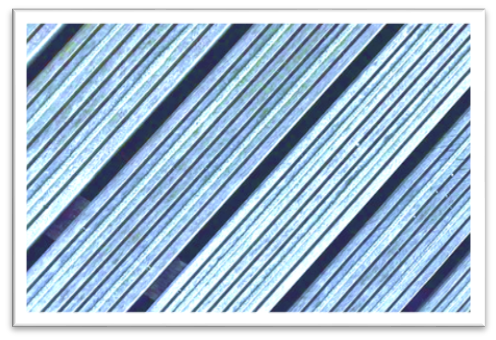

SAN Engineering offers SuperDYMA in applications including cable trunking, drain troughs, deck floors, ceiling frames, HVAC components, fences, truss frames, greenhouses, and square or round pipes — spanning industrial construction, housing materials, and agricultural use.

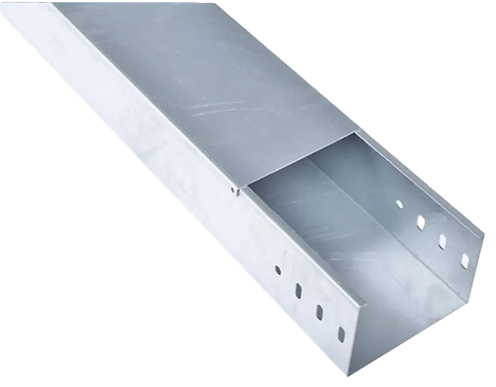

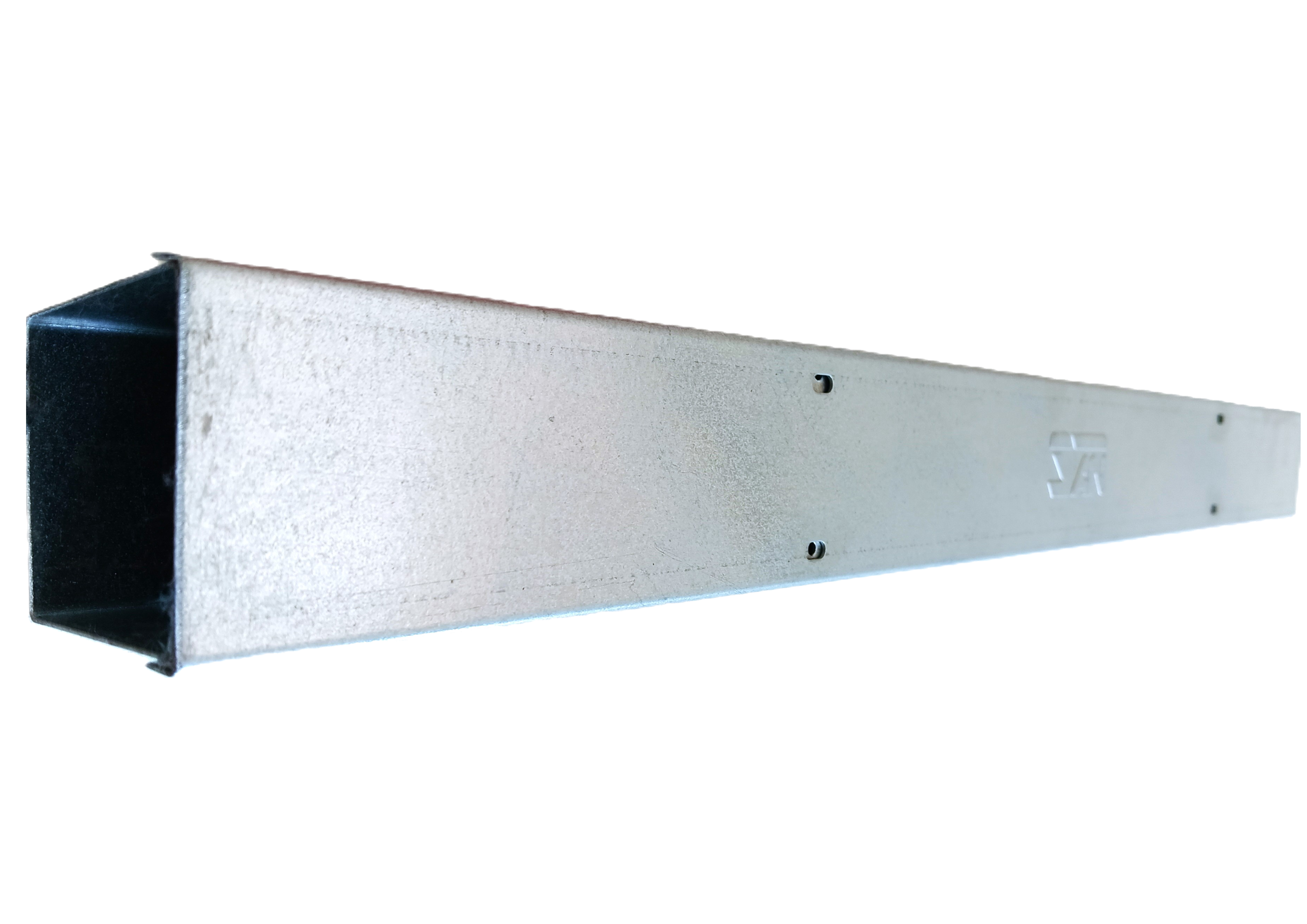

SuperDYMA trunking from SAN Engineering is cable trunking engineered with next-generation Zn-Al-Mg coated steel, offering superior corrosion resistance and a smooth, installation-friendly surface. Tested to withstand 2000 hours of salt spray with minimal rust, it suits data centres, industrial facilities, and coastal environments.
Yes. SuperDYMA can lower costs at several stages — a reasonable purchase price from reduced coating mass, easier handling with no need for edge protection during processing and transport, and reduced maintenance and replacement costs after installation, which extends overall project lifetime.
